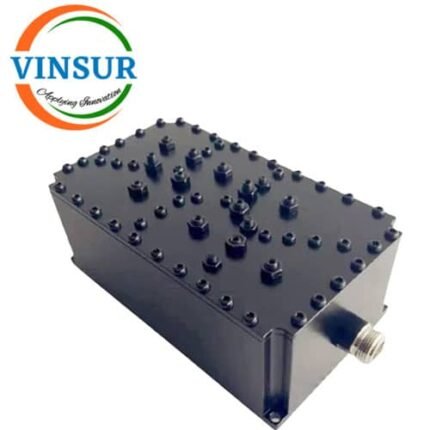

VSW-BPF-3885-NF — UHF CAVITY FILTER (380-385MHZ)
- RF Passive Device
- UHF Cavity Filter
- Frequency 380-385MHz
For Orders & Info
Description
| SPECIFICATION | |
| Frequency(MHz) | 380-385MHz |
| BW(MHz) | 5MHz |
| Insertion Loss(dB) | ≤1.3 |
| Return Loss(dB) | ≥18 |
| Rejection (dB） | ≥60dB@5MHz out of band |
| Impedance | 50 ohm |
| Power Rating(W) | 50W (average) |
| Operating Temperature (deg) | -20～+70℃ |
| Connector | N Female |
| Color | Black |
| Relative Humidity | 5%-95% |
