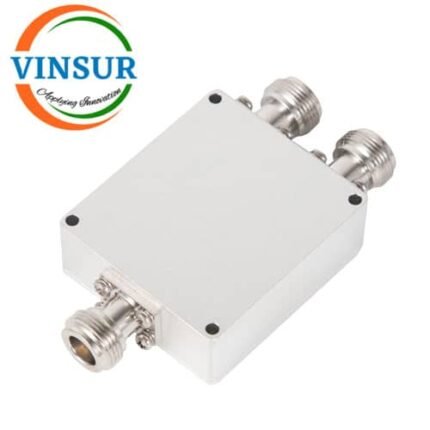

VSW-2WPS-5060-NF — 50W 2 WAY POWER SPLITTER (500-6000MHZ, N FEMALE)
- RF Passive Device
- RFÂ Power Splitter
- 500-6000MHz
- 2-Way
- N-female
For Orders & Info
Description
| SPECIFICATION | |
| Split Chanel | 2-way |
| Split Loss | 3.0 |
| Insertion Loss(dB) | ≤1.5 |
| Isolation(dB) | ≥20 |
| Freq(MHz) | 500-6000MHz |
| VSWR | ≤1.40 |
| Power Rating(W) | 50W (average Per Port) |
| Impedance | 50 ohm |
| Connector | N Female |
| Color | Sandblasting natural color conductive oxide |
| Relative Humidity | 5-95% |
| Operating Temperature(℃) | -30~+65 |
