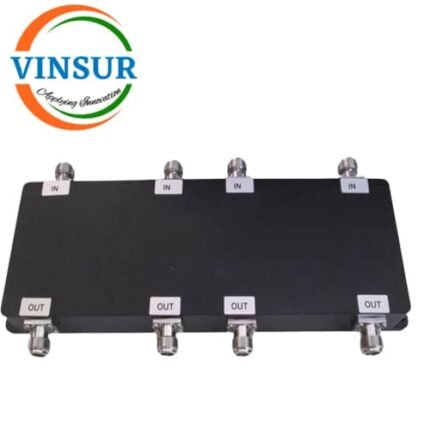

VSW-4:4RC-4G-2.7 — 4:4 WAY 4G RF COMBINER (698-2700MHZ)

SKU: VSW-4:4RC-4G-2.7

RF Passive Device
RF Combiner
698-2700 MHz
4:4 way
N-female

Click Here to get Datasheet

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

SPECIFICATIONS
Frequency Range	698- 2700MHz
Impedance	50 Ω
VSWR	<1.3
Insertion Loss	<7.2(Including Distribution Loss and Fluctuation)
Isolation	>23 dB
Average Power	200 W / Peak 500 W
PIM (IM3)	<-150dBc@2×+43dBm
Connector	N- Female / Customized
Temperature	-20 ~ +85 ºC
Color	Black/ Customized

Customer Reviews

Reviews

There are no reviews yet.

Be the first to review “VSW-4:4RC-4G-2.7 — 4:4 WAY 4G RF COMBINER (698-2700MHZ)”

You may also like

RF Combiner, Combiners, RF Passive Device

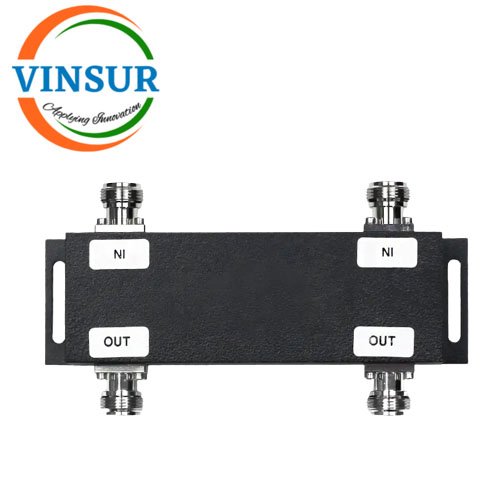

VSW-2:2RC-4G-2.7 — 2:2 WAY 4G RF COMBINER (698-2700MHZ)
