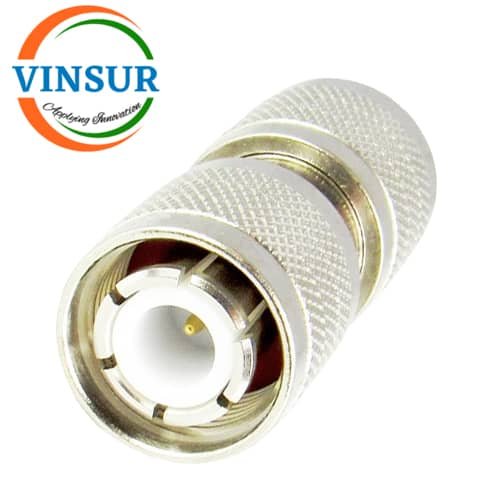

VSW-41R110R110 — RF ADAPTER – 50 OHM,HN,MALE,STRAIGHT,TO, HN,MALE,STRAIGHT,ADAPTERS

SKU: VSW-41R110R110

RF Adapters
HN-Type Adapters
HN-Type to HN-Type Adapter
Male to Male

Click Here to get Datasheet

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

ADAPTER SPECIFICATIONS
Adapter Side 1 Series	HN-Type
Gender1	Plug(Male)
Orientation	Straight
Impedance (Ohms)	50
Adapter Side 2 Series	HN-Type
Gender2	Plug(Male)
Orientation	Straight
Mounting Features	–
Impedance (Ohms)	50
Body Plating	Nickel
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Insulator Material	PTFE
Max Frequency (GHz)	DC to 4GHz
VSWR	1.20 Max
Min. Temp. (Celsius)	-65°C
Max. Temp. (Celsius)	+165°C
