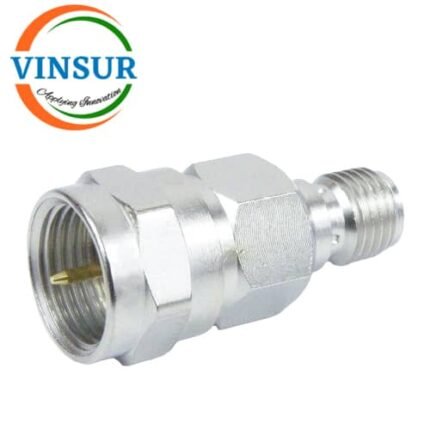

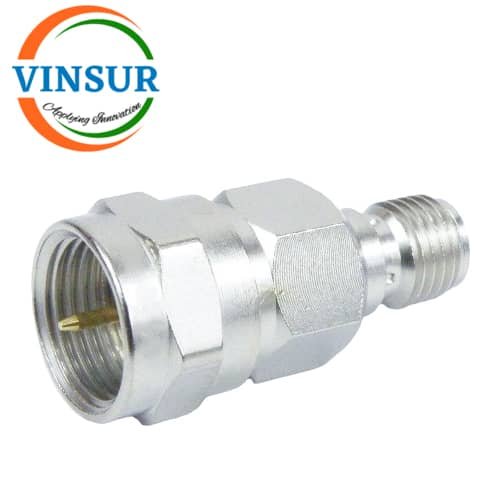

VSW-41B1104210 — RF ADAPTER – 50 OHM,F TYPE , MALE , STRAIGHT , TO,SMA,FEMALE,STRAIGHT,ADAPTERS

SKU: VSW-41B1104210

RF Adapters
F-Type Adapters
F-Type to SMA Adapter
Male to Female

Click Here to get Datasheet

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

ADAPTER SPECIFICATIONS
Adapter Side 1 Series	F-Type
Gender1	Plug(Male)
Orientation	Straight
Impedance (Ohms)	75
Adapter Side 2 Series	SMA
Gender2	Jack(Female)
Orientation	Straight
Mounting Features	–
Impedance (Ohms)	50
Body Plating	Nickel
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Insulator Material	PTFE
Max Frequency (GHz)	DC to 2GHz
VSWR	≤1.2
Min. Temp. (Celsius)	-65°C
Max. Temp. (Celsius)	+165°C
