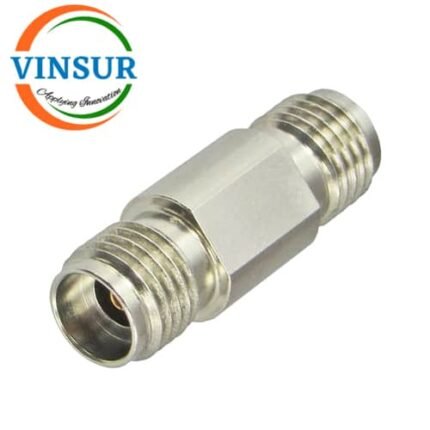

VSW-2.92-FS-SMA-FS-AD — RF ADAPTER – 50 OHMS, 2.92mm FEMALE STRAIGHT TO SMA FEMALE STRAIGHT ADAPTER
- RF Adapters
- 2.92mm Adapters
- 2.92mm to SMA Adapter
- Female to Female
- Straight
- 50Ω
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | 2.92mm |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Adapter Side 2 Series | SMA |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Mounting Features | – |
| Impedance (Ohms) | 50 |
| Body Plating | Stainless Steel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 27GHz |
| VSWR(Max) | 1.15 |
| Min. Temp. (Celsius) | -40°C |
| Max. Temp. (Celsius) | +85°C |
