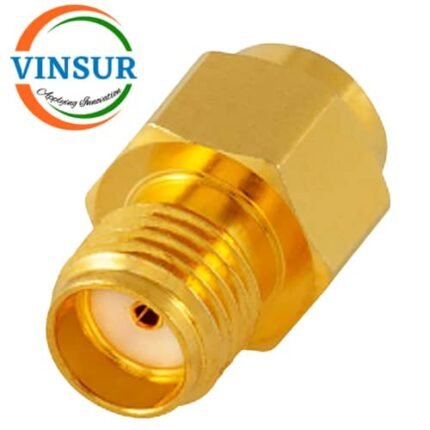

VSW-1W-18G-SMA-F — 1W RF Termination Load (DC-18GHz, SMA Female)
- RF Passive Device
- RF Termination Load
- DC-18GHz
- SMA Female
For Orders & Info
Description
| SPECIFICATION | |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Gender | Jack |
| Impedance (Ohms) | 50 |
| Orientation | Straight |
| Power Handling | 1watt |
| VSWR | 1.20 |
| Frequency | DC-18GHz |
| Temp (Max Degrees Celsius) | 125°C |
| Temp (Min Degrees Celsius) | -55°C |
