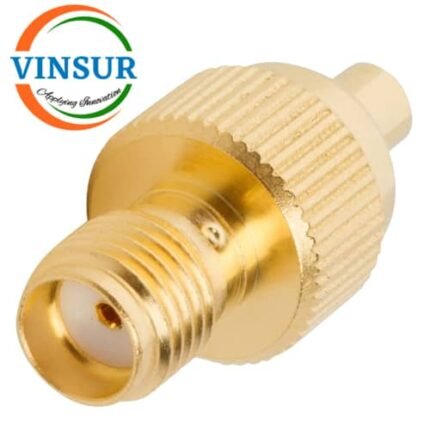

41420721 — RF ADAPTER – 50 OHMS, MMCX FEMALE TO SMA FEMALE STRAIGHT ADAPTERS

RF ADAPTER: 50Ω
MMCX Adapter
MMCX to SMA Adapter

Click Here to download the datasheet

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

ADAPTER SPECIFICATIONS
Adapter Side 1 Series	MMCX
Gender1	Jack(Female)
Orientation	Straight
Impedance (Ohms)	50
Adapter Side 2 Series	SMA
Gender2	Jack(Female)
Orientation	Straight
Mounting Features	–
Impedance (Ohms)	50
Body Plating	Gold
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Insulator Material	PTFE
Max Frequency (GHz)	DC to 6GHz
VSWR	≤1.15
Min. Temp. (Celsius)	-65°C
Max. Temp. (Celsius)	+165°C
