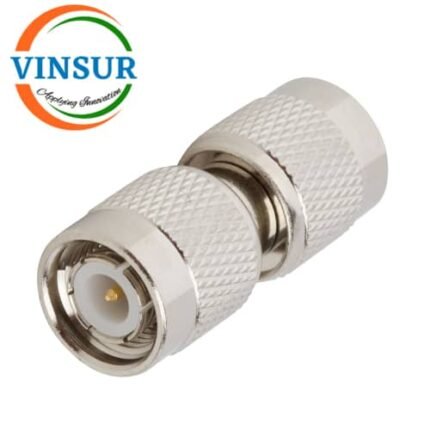

41210211 — RF ADAPTERS – 50 OHMS, TNC MALE TO TNC MALE STRAIGHT ADAPTER

SKU: 41210211

RF Adapters
TNC Adapters
TNC to TNC Adapter
Male to Male
50Ω

Click Here to get Datasheet

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

ADAPTER SPECIFICATIONS
Adapter Side 1 Series	TNC
Gender1	Plug(Male)
Orientation	Straight
Body Finish	Nickel
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Adapter Side 2 Series	TNC
Gender2	Plug(Male)
Orientation	Straight
Impedance (Ohms)	50
Body Finish	Nickel
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Insulator Material	PTFE
Mounting Feature	–
Max Frequency (GHz)	DC to 11Ghz
VSWR	≤1.2
Min. Temp. (Celsius)	-85
Max. Temp. (Celsius)	+40
