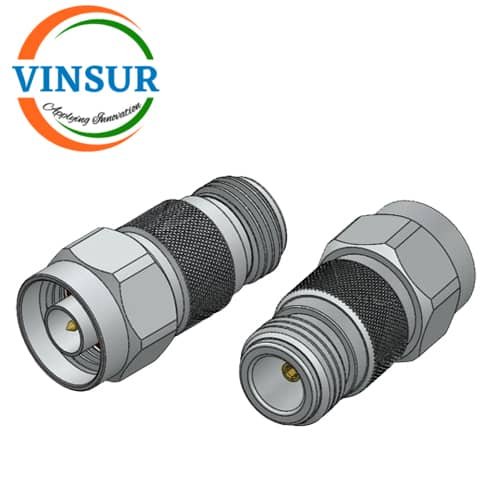

41110121-10 — RF ADAPTER – 50 OHMS, N-TYPE MALE TO N-TYPE FEMALE STRAIGHT ADAPTERS

SKU: 41110121-10

RF Adapters
N Adapters
N to N Adapter
Male to Female
50Ω

Click Here to get Datasheet

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

ADAPTER SPECIFICATIONS
Adapter Side 1 Series	N-type
Gender1	Plug(Male)
Orientation	Straight
Body Plating	Nickel
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Adapter Side 2 Series	N-type
Gender2	Jack(Female)
Orientation	Straight
Body Plating	Nickel
Body Material	Brass
Contact Finish	Gold
Contact Material	Brass
Mounting Features	–
Impedance (Ohms)	50Ω
Insulator Material	PTFE
Max Frequency (GHz)	DC to 11GHz
VSWR(Max)	≤1.2
Min. Temp. (Celsius)	-45°C
Max. Temp. (Celsius)	+125°C
