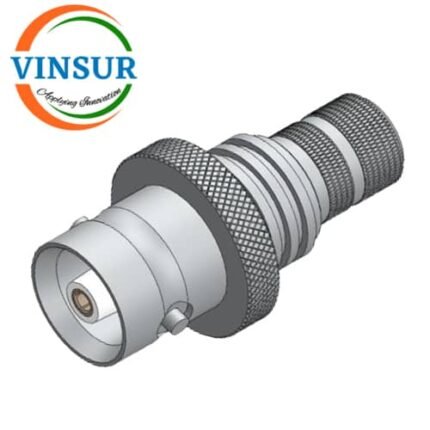

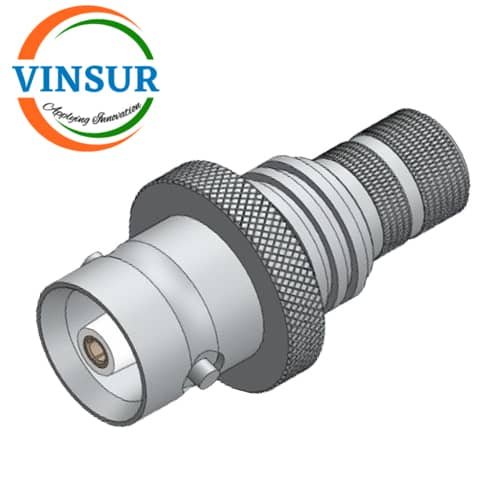

11Z21017 — RF CONNECTOR — 50 OHMS , C FEMALE STRAIGHT CRIMP TYPE LMR-400 CABLE

SKU: 11Z21017

RF CONNECTOR: 50Ω
C-TYPE FEMALE
STRAIGHT
CRIMP TYPE
LMR-400 CABLE

Click Here to download the datasheet

Click Here to download the Drawing

For Orders & Info

Call Us WhatsApp Us

Add to wishlist

Description

CONNECTOR SPECIFICATIONS
Gender	Jack (Female)
Orientation	Straight
Termination Style	Cable – Crimp
Impedance (Ohms)	50Ω
Body Finish	Nickel
Body Material	Brass
Contact Finish	Silver
Contact Material	Brass
Contact Termination Style	Solder
Insulator Material	PTFE
Cable Type	LMR400
Max Frequency (GHz)	DC to 4GHz
Polarity	Standard
Min. Temp. (Celsius)	-65°C
Max. Temp. (Celsius)	+165°C
